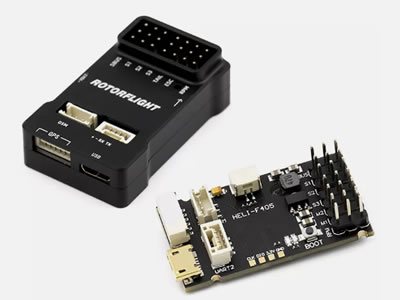

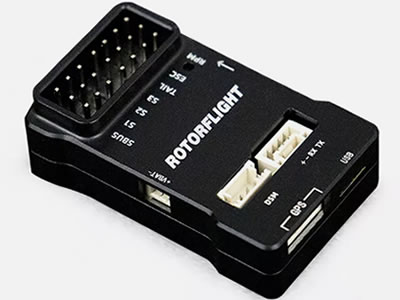

Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller
Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller
  • Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller
  • Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller
  • Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller
  • Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller

Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller

Discount price: [ US$70.00 ]
Shipment cost: [ US$30.00 ]via UPS Express
Ship to
Delivery: 3 to 7 business days UPS Express
Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller

1.it has Flight Controller
2.it has GPS Module.

if you want to know wholesale discount price,please contact us by e-mail.

Flywing Rotorflight HELI 405 RF helicopter 3D Flight Controller Specifications:

it is made in China Flywing,100% original,



Features:

1.Flight Controller: Rotorflight is a Flight Control / FBL Software suite for traditional single-rotor RC helicopters.It is based on Betaflight , enjoying all the great features of the Betaflight platform , plus many new features added for helis . Rotorflight borrows ideas and code also from Heliflight 3D an earlier fork of Betaflight for helicopters

2.Multiple Receiver Support: Support mainstream PPM , Spektrum , Frsky , CSRF .XBUS , ELRS , sbus , ibus , etc , Without replacing the remote controller , and make a lossless transition to Rotorflight open source project

3.Built In Black Box: 16MB Flash can record the helicopter's flight attitude , vibration , speed , Servo movement remote control channel and many other data ,which is convenient for testing and debugging

4.Gyroscope: Support constant speed of gyroscope.Support Oneshot , Multishot , Dshot and other ESC protocols , maintain constant headspeed , Real time power change through flight status , and maintain constant headspeed PWM ESC can realize speed stabilization compensation through RPM line

5.Telemetry Feature: You can adjust a variety of settings using OpenTX or Edge-TX transmitter with the Rotorflight Lua scripts .They allow you to change things like PIDS ,rates , filters , failsafe and governed headspeed on the field

Note: It does not support multi rotor aircraft or fixed wings.


Specifications:

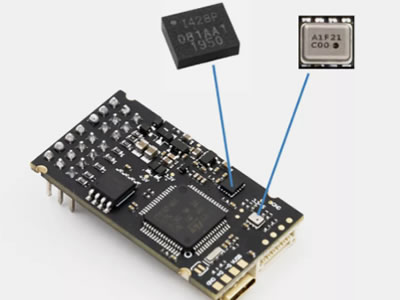

CPU: STM32F405RGT6

Gyro: ICM-42688

Baro: SLP-06

Flsh:16M Flash

IO: UART * 1 GPS * 1 . DSM * 1 . PWM * 5 . SBUS *Voltage detection * 1 ( 5-30v ) , RPM * 1

Firmware: Rotorflight

Receiver: PPM , Spektrum , Frsky , CSRF , XBus,ELRS,Sbus,ibus...

Telemetry: Frsky , HOTT , S.Port , MSP , EDGEXT \ELRS...

ESC: PWM . Oneshot . Multishot . DShot

Tail mode:Tail motor : 760us / 1520us Servo

Size: 43mm *22mm*14mm

Weight: 17g



Package include:

1x Rotorflight

Description:

Rotorflight has great GUI application for setting up and configuration.Advanced PID control, tuned for helicopters.Main rotor speed governor.Precompensation between collective / cyclic / yaw.Advanced gyro filtering for helicopter so Dynamic RPM based notch filter bank. Advanced dynamic LPF.Fully customisable servo / motor mixer.Flexible servo configuration.Flight Profiles ( Banks )

Firmware Refresh Upgrade: https://github.com/rotorflight
